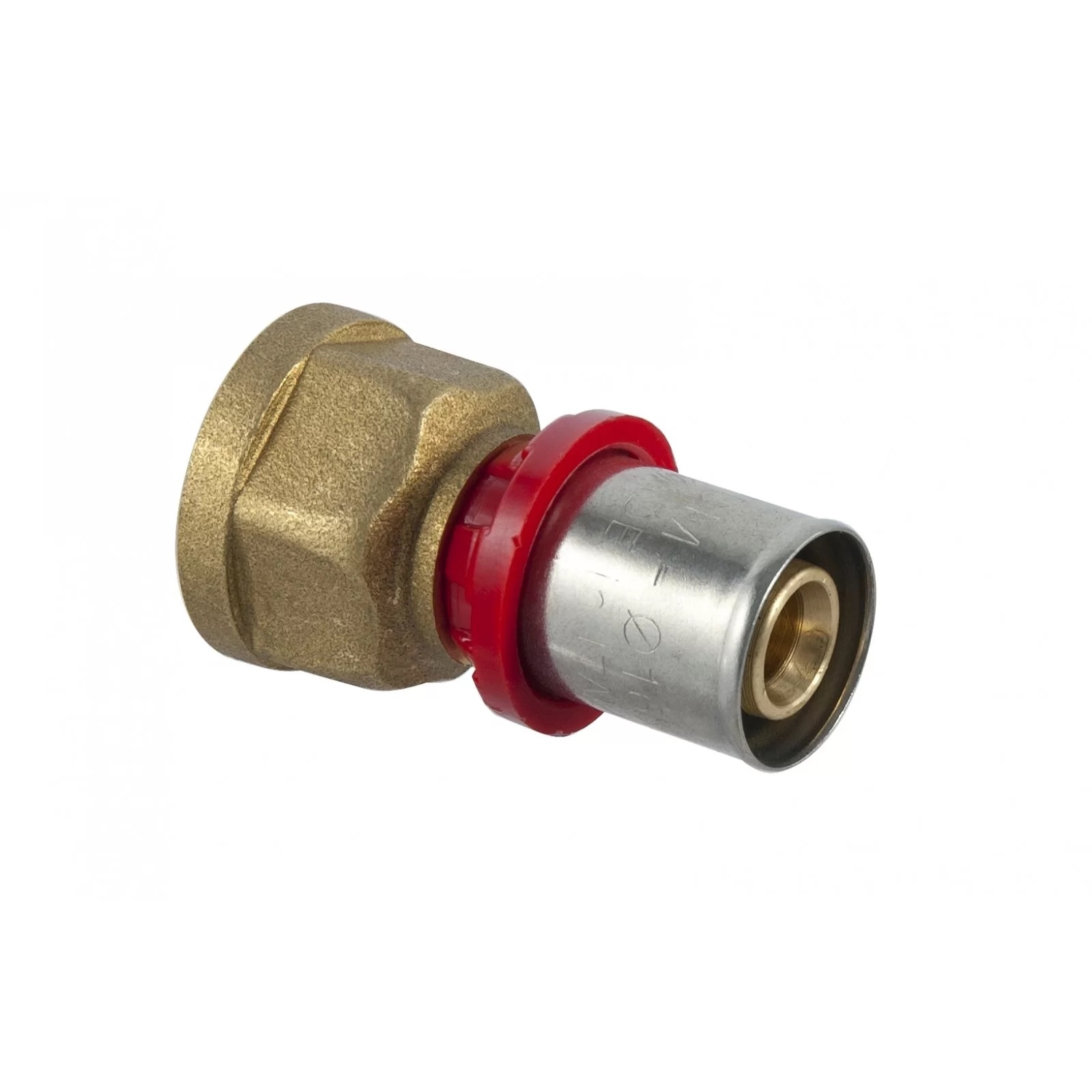

The multiprofile female threaded press fitting is produced following strict company and regulatory standards. This fitting is suitable both for civil/domestic systems and for industrial and naval systems. Thanks to the qualitative and technical standards, the female threaded press fitting is perfect for the conduction of potable water for domestic use and for heating systems with high and low operating temperatures.
TECHNICAL, CONSTRUCTION AND PERFORMANCE CHARACTERISTICS OF THE FEMALE THREADED PRESS-ON FITTING FOR MULTILAYER PIPE
- Fitting body in CW617n brass
- Plastic viewer ring, which allows you to check the correct insertion of the tube and which dielectrically insulates the tube itself from the brass body
- O-Rings in EPDM for drinking water
- Clamping bush in AISI 304 stainless steel
- Plier profiles suitable for pressing the fitting: TH - H - U
REGULATORY COMPLIANCE
- Produced according to D.M. n.37 dated 22/01/2008 art.7
- Quality compliant with the UNI EN ISO 9001:2008 standard
- Potability guaranteed by compliance with the D.M. n.174 dated 06/04/2004
- Complies with UNI EN 12165 and UNI EN 12164 standards
- Thread compliant with the UNI EN 10226-1:2006 standard
- Seals compliant with the UNI EN 681-1:2006 standard
OTHER REFERENCE STANDARDS
UNI E 1254-3
UNI EN 21003-3:2009
UNI EN 10954-2
DVGW W534 (01/05/2004)
BGA KTW (07/01/1977)
DVGW W270 (01/11/2007)
OPERATING CONDITIONS OF THE FEMALE THREADED PRESS-ON FITTING FOR MULTILAYER PIPE
Non-returnable
$4.22
Choose Quantity :
