T-slot cylinder sensor

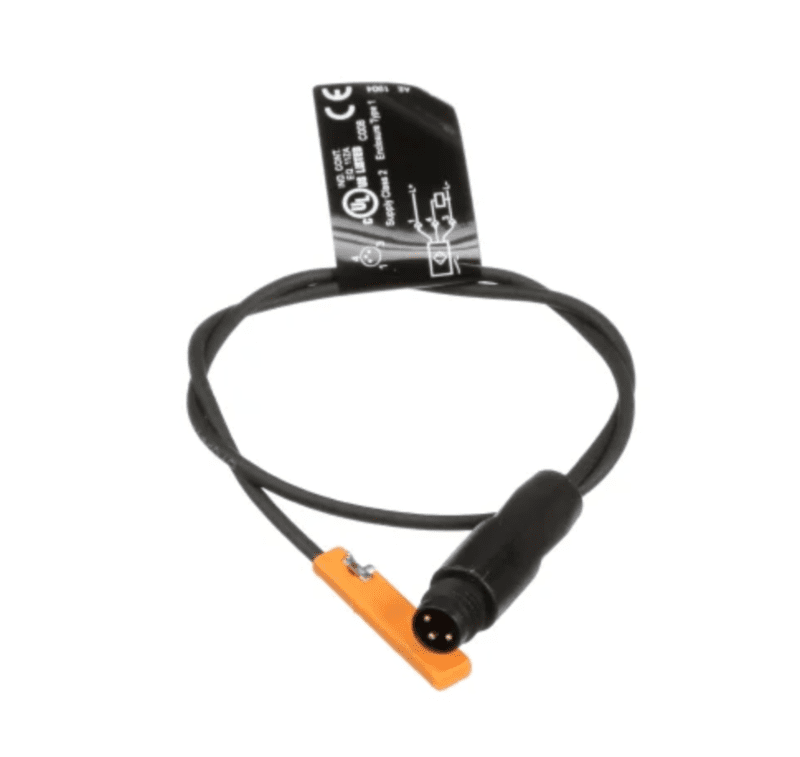

Name: IFM Efector MK5101 - Sensor
Brand: IFM
SKU: IFM-MK5101
Price: 99.0 USD
Availability: InStock

$99.00

$105.00

Choose Quantity :

Product Details

Product characteristics

Electrical data

Operating voltage [V]	10...30 DC; (cULus - Class 2 source required)
Current consumption [mA]	< 10
Protection class	III
Reverse polarity protection	yes
Max. power-on delay time [ms]	30

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	10000
Short-circuit protection	yes
Type of short-circuit protection	yes (non-latching)
Overload protection	yes

Monitoring range

Magnetic sensitivity [mT]	2.8
Travel speed [m/s]	> 10

Accuracy / deviations

Hysteresis [mm]	< 1.5
Repeatability [mm]	< 0.2

Operating conditions

Ambient temperature [°C]	-25...85
Protection	IP 65; IP 67

Tests / approvals

EMC

MTTF [years]

3694

UL approval

Ta	-25...75 °C
Enclosure type	Type 1
voltage supply	Limited Voltage/Current (Marking Class 2)
UL approval number	C003
File number UL	E174191

Mechanical data

Weight [g]	12.1
Mounting	flush mountable
Type of mounting	fastening clamp with combined slot / hexagon socket, width across flats 1.5
Cylinder type	T-slot cylinders
Dimensions [mm]	25 x 5 x 6.5
Material	housing: PA; Fastening clamp: stainless steel

Displays / operating elements

Display

Switching status

1 x LED, yellow

Accessories

Items supplied

rubber memory stop: 1

cable clip: 1

Remarks

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Cable: 0.3 m, PUR
Connection	Connector: 1 x M8; coding: A; Locking: snap-fit
